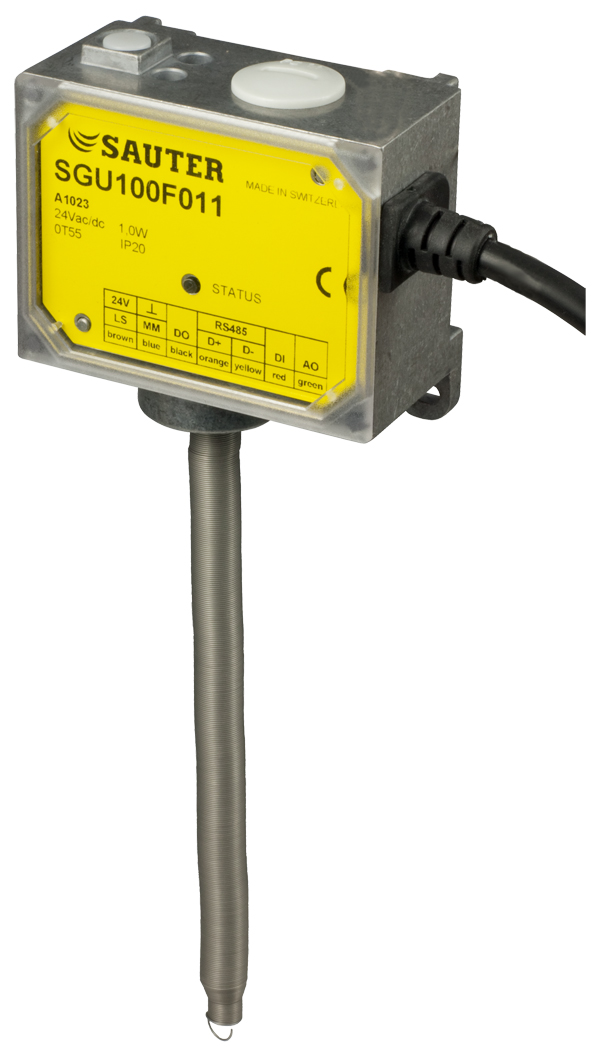

Sash sensor
SGU 100
How energy efficiency is improved
Together with ASV115CF152, the VAV compact controller for critical areas, it enables energy-saving and safe air volume control according to needs in fume cupboards.
Features
-
Infinitely-variable measurement of the position of the vertical front sash on laboratory fume cupboards
-
Accurate detection of sash position, with no wear and tear
-
Fast control of the air volume; no oscillation
-
Easy fitting, preferably on the counterweight of the front sash
-
Teach-in function for adjusting the travel of the front sash
-
Easy to program using the SAUTER CASE Sensors software
-
Integrated excess-travel alarm
-
Power cable 2.5 m long, 7 × 0.32 mm2, fixed to housing
-
Fitted with halogen-free cable as standard
-
Remote access and remote maintenance: Commissioning and service via bus or external push-button
-
3-colour LED status indicator
-
Acoustic status and alarm elements (can be deactivated)
