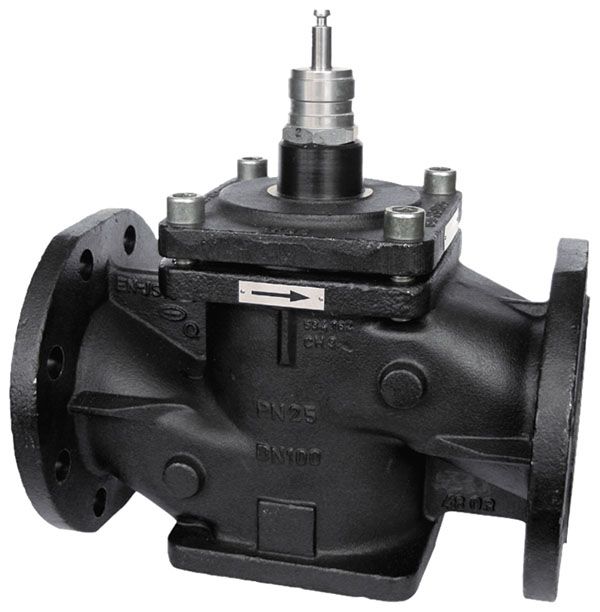

Pressure-relieved 2-way flanged valve, PN 25 (pn.)
VUP
How energy efficiency is improved
Efficiency means precise and reliable control
Features
-
Continuous control of cold and hot water in closed circuits, and of steam
-
In combination with AVP 242 to 244 actuators as control unit.
-
Water quality as per VDI 2035
-
Not suitable for drinking water or potentially explosive atmospheres
-
Valve with flange connection as per EN 1092-2, seal form B
-
Regulating valve, free of silicone grease, with pressure compensation, galvanised and painted black
-
The valve is closed when the spindle is moved in
-
Valve body made of ductile cast iron
-
Valve seat, plug and spindle made of stainless steel
-
Closing procedure only against the pressure
-
Maintenance-free stuffing box in brass with spring-loaded PTFE-FKM-PTFE washer
