Energy DataLogger for EMS
EDL 100/110

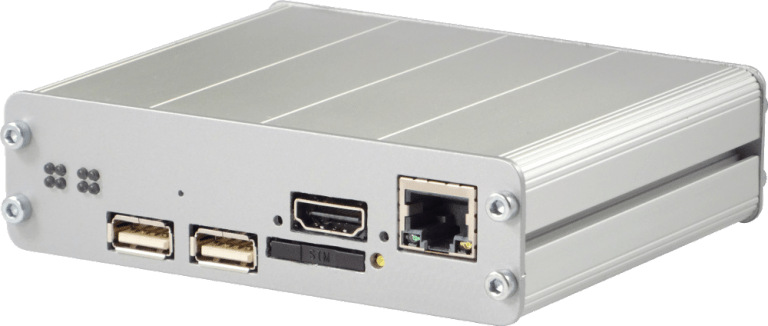

EDL 100/110: Energy Data Logger for EMS
Your advantage for more energy efficiency
With their numerous communication options and integrated firewall, SAUTER Energy Data Loggers (EDL) are the ideal data logging devices. They can be used to store all the meter and sensor data for an installation securely and cost-effectively on site, independently of a building management system. The data are cyclically compared with the EMS server and backed up. As a safety measure against possible connection interruptions with the EMS server, the data can be buffered for several days.
Features
No moving parts
No fan
Memory on flash card
Overcurrent protection
Overvoltage protection
ESD protection
