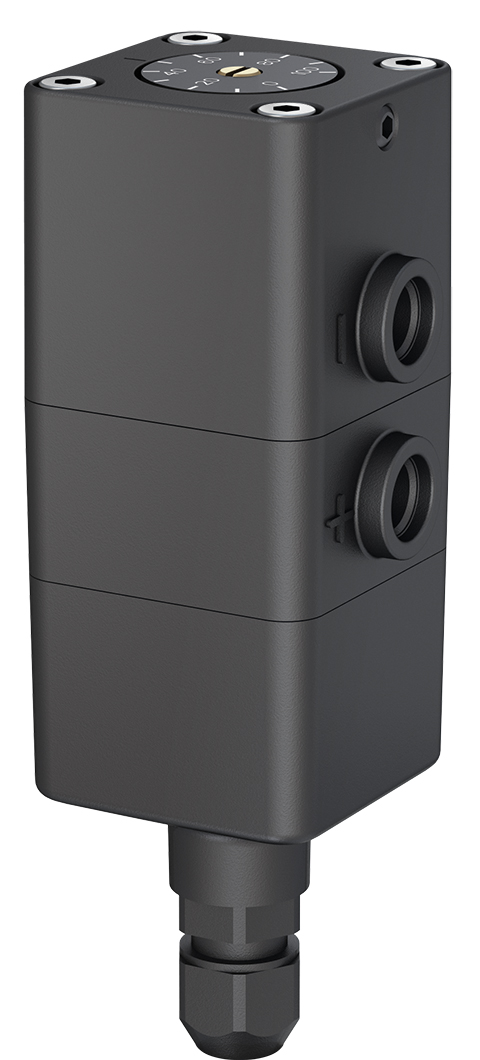

Differential pressure switch
DSD
How energy efficiency is improved
Control and monitoring of differential pressure according to needs and with no auxiliary energy
Features
-
For monitoring the differential pressure in liquids, gases and vapours
-
For use in, for example, filter technology and plant and machine engineering
-
Differential pressure setting ranges from 0.06 to 6 bar
-
Up to 80 °C media temperature
-
High repeat precision
-
High overload protection
-
Can be used in all neutral media, such as heating water, neutral gases, oils etc.
-
Long serviceable life
-
With fitting bracket
