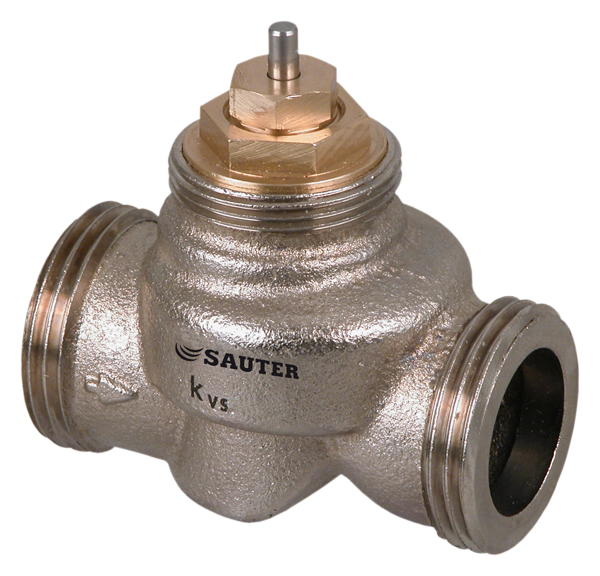

2-way valve, PN 16
VUL
How energy efficiency is improved
Absolutely no losses through leakage. Energy is restrained
Features
-
Regulation of heating zones, air secondary-treatment units and fan coil units in combination with AXF 217S, AXM 217(S), AXT 301 or AXS 315S actuators for unit valves
-
Flat-sealing standard version or version with clamping ring screw fitting for pipe Ø 15 mm with DN 10
-
Valve with male thread as per DIN EN ISO 228-1, class B
-
Stuffing box can be replaced under system pressure
-
Control passage A–AB is closed when the spindle is moved in
-
Closes against the pressure
-
Valve body made of nickel-plated cast brass for DN 10 and gunmetal for DN 15 and DN 20
-
Plug with EPDM soft seal
-
Stainless-steel spindle
-
Stuffing box with double O-ring seal
Data sheets
Fitting Instructions
Service documentations
Declaration on materials and environment
Other documents
Brochures
VUL: Unit through valve (regulating), PN 16
pdf : 2 MB
pdf
VUL, BUL
pdf : 141 KB
pdf
AXM217, AXM217S
pdf : 633 KB
pdf
VUL, BUL
PDF : 392 KB
PDF
VUL010...020
PDF : 85 KB
PDF
Poster valves and actuators - 2023
pdf : 1 MB
pdf
Valves and actuators
pdf : 3 MB
pdf
